T-Series
High-Performance Installation Amplifiers

Designed for the fixed installation market, the high performance T Series features MC² Audio’s complementary Class AB bipolar topology and the unique MC² Audio current driven floating drive stage.
Conventional analogue level controls help deliver the cleanest sound available coupled with ultra-high standards of reliability. The T Series’ proprietary control and protection circuitry continuously checks for fault conditions including shorted outputs, DC on outputs, excessive temperature, and component failure. If such an event occurs the outputs are disconnected, saving expensive driver repair bills.
Sophisticated ‘side chain’ limiters prevent distortion and speaker damage but are out-of-circuit until the onset of clipping. The control circuitry provides full protection against inrush current limiting with delayed ‘turn on’. Low noise vari-speed fans are utilized to minimize mechanical noise, making the T Series an ideal choice for live theatre. Optional internal crossover cards available.
All MC² Audio products are covered by a 5 year warranty.
Specifications
Number of channels |
2 |
Output Power: (per channel) |
8 ohms |
215W |
4 ohms |
375W |
2 ohms |
N/A |
Output Power: (bridged) |
8 ohms |
750w |
4 ohms |
N/A |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
+2.0dBu
(1.0V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: |
Nominal @ 240v into 4 ohms |
1.0A |
Nominal @ 120v into 4 ohms |
2.0A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
12.6kg |
Boxed (shipping weight) |
14.1kg |
Images

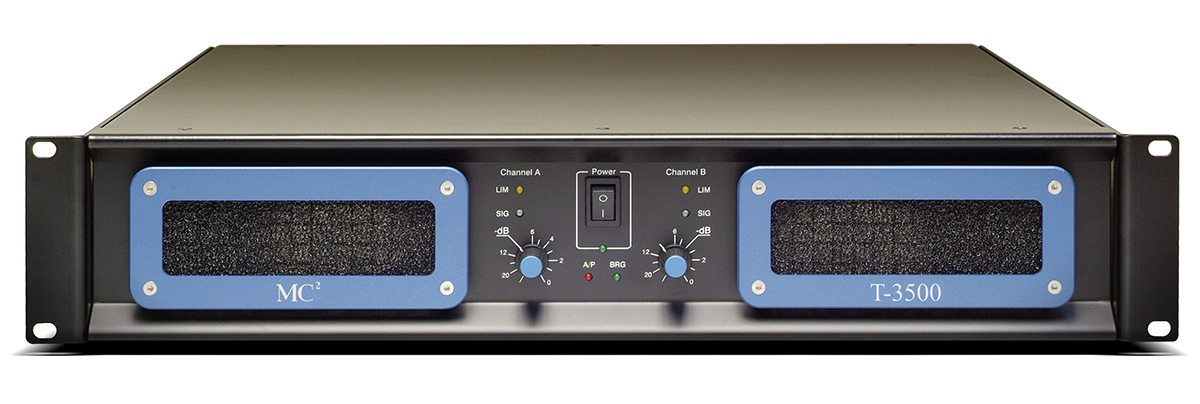

Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
2 |
Output Power: (per channel)* |
8 ohms |
450W |
4 ohms |
750W |
2 ohms |
1150W |
Output Power: (bridged) |
8 ohms |
1500W |
4 ohms |
2300W |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
+3.5dBu
(1.20V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: |
Nominal @ 240v into 4 ohms |
1.9A |
Nominal @ 120v into 4 ohms |
3.8A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
13.8kg |
Boxed (shipping weight) |
15.3kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
2 |
Output Power: (per channel)* |
8 ohms |
625W |
4 ohms |
1150W |
2 ohms |
2100W |
Output Power: (bridged) |
8 ohms |
2300W |
4 ohms |
4200W |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32/36dB |
Sensitivity (for max power) |
+7.5/3.5dBu
(1.8/1.2V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: |
Nominal @ 240v into 4 ohms |
2.8A |
Nominal @ 120v into 4 ohms |
5.6A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
20.4kg |
Boxed (shipping weight) |
22.2kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
4 |
Output Power: (per channel)*C&D only |
8 ohms |
160W |
4 ohms |
300W |
2 ohms |
475W* |
Output Power: (bridged)*C&D only |
8 ohms |
600W |
4 ohms |
950W* |
THD%: (@1dB below max output) |
@ 1kHz |
< 0.008% |
20Hz to 20kHz |
< 0.03% |
Gain / Sensitivity: |
Gain |
32dB |
Sensitivity (for max power) |
+2.0dBu
(1.0V) |
Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
Power Consumption: |
Nominal @ 240v into 4 ohms |
1.5A |
Nominal @ 120v into 4 ohms |
3.0A |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
14.9kg |
Boxed (shipping weight) |
17.0kg |
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
Number of channels |
4 |
Output Power: (Handling @ 4 ohms / Ch) |
8 ohms |
250W |
4 ohms |
500W |
2 ohms |
750W |
Output Power: (bridged) |
8 ohms |
N/A |
4 ohms |
N/A |
THD%: (@1dB below max output) |
50Hz to 16kHz |
<0.03% |
N/A |
N/A |
Gain / Sensitivity: |
Gain |
N/A |
Sensitivity (for max power) |
N/A |
Frequency Response: |
20Hz to 20kHz
(+ 1/- 0.5dB) |
Power Consumption: |
Nominal @ 240v into 4 ohms |
Passive |
Nominal @ 120v into 4 ohms |
Passive |
Dimensions: (2U) (mm) |
Amplifier |
88(h) x 482(w) x 428(d) |
Single Box (UK shipping) |
230 x 580 x 560 |
Double Box (outside UK) |
250 x 610 x 600 |
Weight: |
Amplifier |
12.0kg |
Boxed (shipping weight) |
Varies |
Downloads
Datasheet
Manual
Specifications
T1500 and T3500 amplifiers have been discontinued.
Original datasheets and manuals for these T Series models
can be found here under discontinued products.
All application guides regarding operation and use are still available
in the Technotes section here.
