Delta-Series Amplifiers with DSP
Processing and Network Audio Power Amplifiers
Combining new technology power amplification with the highest definition XTA DSP, the Delta Series offers performance and convenience at a whole new level. Now shipping with free 1700+ preset library in AudioCore: Amped Edition!
Powerful processing features, such as FIR filtering and Dante networking, work alongside unique enhancements including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing.
Configure and tune using a fast, powerful combination of AudioCore (XTA’s fast efficient control software platform) and DeltaDirect, the bespoke iPad app. Every aspect of a network of amplifiers can be controlled and monitored, wirelessly. USB, direct Ethernet and RS485 control options plus configurable GPIO offer unparalleled flexibility.
All MC² Audio products are covered by a 5 year warranty.
Specifications
| Number of channels |
4 |
| Output Power: (per channel)* |
| 8 ohms |
500W |
| 4 ohms |
1000W |
| 2.7 ohms |
1400W |
| 2 ohms |
1200W |
| Output Power: (bridged) |
| 8 ohms |
2000W |
| 4 ohms |
2400W |
| THD%: (@1dB below max output) |
| @ 1kHz |
< 0.08% |
| 20Hz to 20kHz |
< 0.1% |
| Gain / Sensitivity: |
| Gain |
32dB |
| Sensitivity (for max power) |
6.2dBu |
| Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
| Power Consumption: (< 50W in standby) |
| Nominal @ 240v into 4 ohms |
2.9A |
| Nominal @ 120v into 4 ohms |
6.0A |
| Dimensions: (2U) (mm) |
| Amplifier |
88(h) x 482(w) x 428(d) |
| Single Box (UK shipping) |
230 x 580 x 560 |
| Double Box (outside UK) |
250 x 610 x 600 |
| Weight: |
| Amplifier |
10.0kg |
| Boxed (shipping weight) |
12.0kg |
*for 100V line drive specifications, please read this document
Images

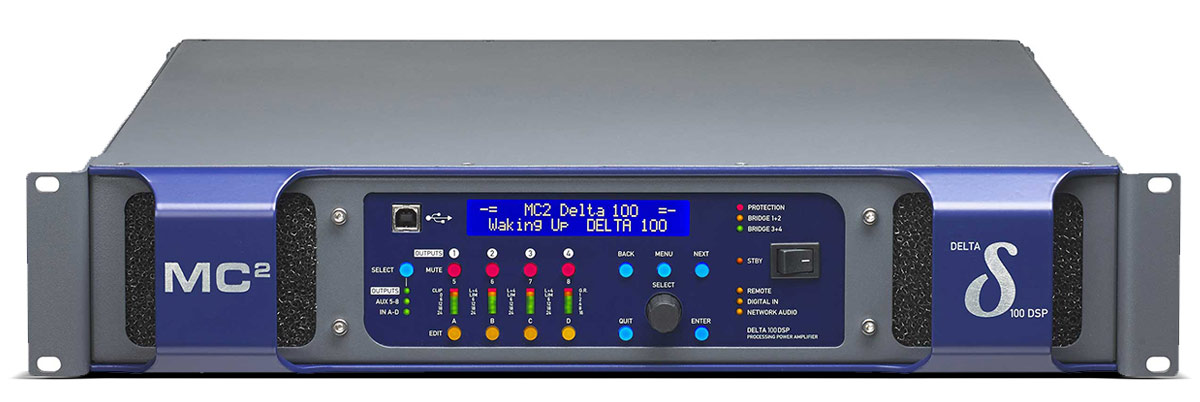

Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
| Number of channels |
4 |
| Output Power: (per channel)* |
| 8 ohms |
1000W |
| 4 ohms |
2000W |
| 2.7 ohms |
2200W |
| 2 ohms |
2000W |
| Output Power: (bridged) |
| 8 ohms |
4000W |
| 4 ohms |
4000W |
| THD%: (@1dB below max output) |
| @ 1kHz |
< 0.08% |
| 20Hz to 20kHz |
< 0.1% |
| Gain / Sensitivity: |
| Gain |
32dB |
| Sensitivity (for max power) |
8.8dBu |
| Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
| Power Consumption: (< 50W in standby) |
| Nominal @ 240v into 4 ohms |
5.0A |
| Nominal @ 120v into 4 ohms |
10.4A |
| Dimensions: (2U) (mm) |
| Amplifier |
88(h) x 482(w) x 428(d) |
| Single Box (UK shipping) |
230 x 580 x 560 |
| Double Box (outside UK) |
250 x 610 x 600 |
| Weight: |
| Amplifier |
10.3kg |
| Boxed (shipping weight) |
11.8kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
Specifications
| Number of channels |
4 |
Output Power: (per channel)*
|
| 8 ohms |
1400W |
| 4 ohms |
2700W |
| 2.7 ohms |
3700W |
| 2 ohms |
3500W |
| Output Power: (bridged) |
| 8 ohms |
5400W |
| 4 ohms |
7000W |
| THD%: (@1dB below max output) |
| @ 1kHz |
< 0.08% |
| 20Hz to 20kHz |
< 0.1% |
| Gain / Sensitivity: |
| Gain |
32dB |
| Sensitivity (for max power) |
10.7dBu |
| Frequency Response: |
20Hz to 20kHz
(+ 0/- 0.5dB) |
| Power Consumption: (< 50W in standby) |
| Nominal @ 240v into 4 ohms |
7.5A |
| Nominal @ 120v into 4 ohms |
15.5A |
| Dimensions: (2U) (mm) |
| Amplifier |
88(h) x 482(w) x 428(d) |
| Single Box (UK shipping) |
230 x 580 x 560 |
| Double Box (outside UK) |
250 x 610 x 600 |
| Weight: |
| Amplifier |
10.9kg |
| Boxed (shipping weight) |
12.4kg |
*for 100V line drive specifications, please read this document
Images
Front Panel (Click to enlarge)
Rear Panel (Click to enlarge)
Downloads
Datasheet
Manual
